Standard size:
60000x610x1mm / 30000x610x2mm / 20000x610x3mm / 15000x610x4mm / 12000x610x5mm / 10000x610x6mm
Specifications of ceramic fiber paper:
| Type |
Standard ceramic fiber paper |
High pure ceramic fiber paper |
High Aluminium ceramic fiber paper |
Zirconium ceramic fiber paper |
| Chemical analysis (%) |
AL2O3 |
43 |
47 |
55 |
38 |
| SiO2 |
53 |
51 |
44 |
44 |
| Fe2O3+Ti2O3 |
≤1.2 |
≤0.3 |
≤0.3 |
≤0.2 |
| CaO+MgO |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
| NaO+K2O |
≤0.5 |
≤0.3 |
≤0.3 |
≤0.2 |
| Crganic Content (%) |
5% |
≤5% |
≤5% |
≤5% |
| Density(kg/m3) |
180-220 |
180-220 |
180-220 |
180-220 |
| Work Temperature |
1050 |
1150 |
1250 |
1350 |
| Thickness |
0.5-12mm |
| size (mm) |
40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5 |
Application
Application of ceramic fiber paper:
1:Industrial insulation, sealing, anti-corrosion material
2:Insulation material for instruments and heating element
3:Insulation material for automobile and aerospace industry
4:Expansion joints filling material
5:Isolation for construction material, metallurgy and glass industries,
6:Molten metal sealing gasket
7:Fireproof material
8:Substitute for glass fiber and asbestos fiber

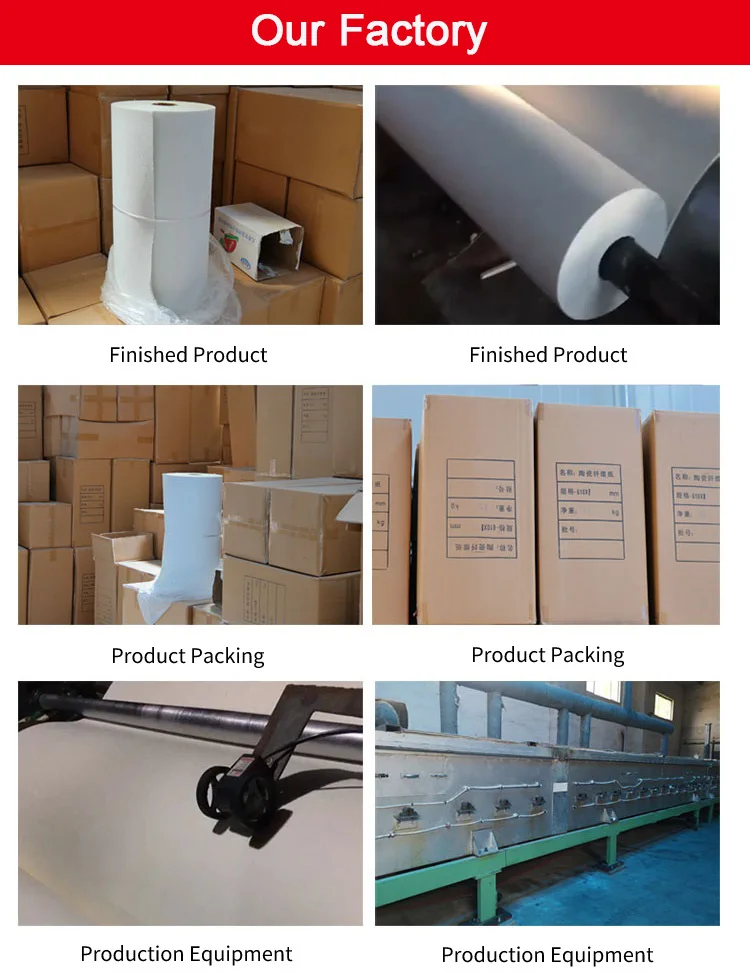

Company Information
ZHENGZHOU RONGSHENG REFRACTORY CO., LIMITED has 30 years of experience in R & D and design of unshape refractory experts, holds 20 utility model patents and 7 invention patents, and has passed the ISO quality, environment and safety management system certification. The company is committed to the R & D, production and service of refractories used in metallurgy, electric power, nonferrous metals, building materials, chemical industry and other industries. Its products cover 198 kinds of materials and 2369 varieties in three categories (acidic, neutral and alkaline), providing overall solutions for refractories for 1200 domestic and 200 foreign customers.
